Prototyping Daughterboard

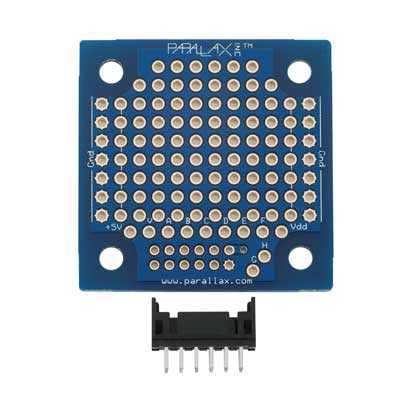

Parallax's Prototyping Daughterboard is a convenient through-hole board that allows you to build your own circuits for the MoBoStamp-pe motherboard, the Propeller Backpack, and the Spinneret web server.

Key Features:

• 70 uncommitted plated through-holes on a 0.1” grid for your components
• 11 connecting pads for daughterboard connector supply lines and signals
• Ground plane for quiet operation

Application Ideas:

• Robotic Controls
• Data Acquisition Circuitry
• Industrial Control I/O
• Pushbuttons and LEDs
• Custom Sensors

Note: You will need to provide; components and wires, filter and bypass connectors, Parallax Motherboard or DaughterboardExpander, connectors to the outside world.

Overview

Details

• 7 plated through-holes each in two uncommitted voltage busses
• 14 grounded through-holes
• Motherboard connector: compatible with the MoBoStamp-pe, the Propeller Backpack, and the Spinneret.
• Power requirements: 5 to 9 VDC
• Dimensions:1.37 x 1.37 x 0.37 in (35 x 35 x 9.64 mm)
• Operating temp range: -32 to +158 °F (-0 to +70 °C)

Download	Details	More Info
	Prototyping Daughterboard Documentation - 761.67 KB | updated: 27 Sep 2012 - 4:28 pm
