MIXED SIGNAL PICTAIL DEMO BOARD

• 4 layer board for low noise evaluation
• Supports the following Microchip Mixed Signal devices (surface mount footprint):

• MCP492X SPI DACs
• TC132X I2C DACs
• MCP330X and MCP320X SPI SAR ADCs
• MCP3221 and MCP3021 I2C SAR ADCs
• MCP1525 and MCP1541 Voltage References
• MCP170X LDOs

• PIC16F767-I/SS footprint with ICSP™ (In-Circuit Serial Programming™) interface
• Sample kit contains a number of applicable Microchip DACs, ADCs, LDOs and Vrefs

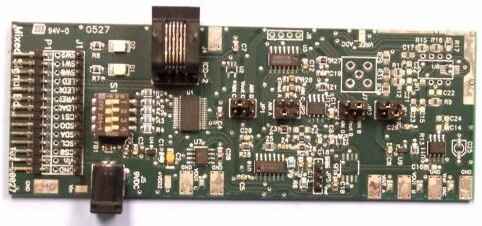

The Mixed Signal PICtail™ Evaluation Board enables quick and accurate evaluation of the performance of several Microchip DACs, ADCs, LDOs, Vrefs and Operational Amplifiers. The board interfaces to the PICkit™ 1 Flash Starter Kit or can utilize the on-board PIC16F767 for “stand-alone” operation. The user can take advantage of the existing PIC® microcontroller library of software routines or develop their own routines. The PIC® microcontroller can select which DAC to configure, which ADC channel to read, and utilize a dual op-amp for various buffer implementations.
