PropStick USB

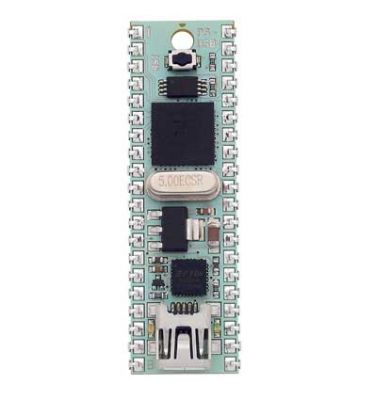

The PropStick USB is a rapid development tool for the powerful 8-cog multiprocessing Propeller microcontroller. The flexibility of a 40-in DIP package is combined with the convenience of an onboard Propeller P8X32A-M44, EEPROM, voltage regulator, removable 5 MHz crystal, reset button, and USB interface. This module is ready for rapid protoyping use in a breadboard, perfboard with wire-wrap, or in a 600 mil 40-pin socket soldered to a PCB.

The PropStick USB is intended to be used in a breadboard or other through-hole design.

Key Features:

• Propeller P8X32A-M44 chip
• 32 KB 24LC256-I/ST EEPROM
• FTDI FT232RG and mini USB connector
• USB data transfer indicator LEDs
• 5 MHz crystal in a removable socket
• 3.3 V, 500 mA voltage regulator
• Reset pushbutton switch

Note: The PropStick USB is not intended to be plugged into 40-pin sockets made for the Parallax BASIC Stamp 2p40, due to differences in programming interface, pinouts, and supply voltages.

Details

• Power requirements: regulated 6 - 9 VDC.
• Communication: 232R USB interface to PC for programming and bidirectional communication
• Dimensions: 2.0 x 0.6 x 0.45 in (51 x 16 x 12 mm)
• Operating temp range: +32 to +158 °F (0 to +70 °C)

Download	Details	More Info
	PropStick Layout Design File - 21.37 KB | updated: 25 Nov 2015 - 11:30 am
	PropStick USB Product Guide - 203.62 KB | updated: 27 Sep 2012 - 3:11 pm
	Propeller Education Kit Labs - PropStick USB Setup - 1.25 MB | updated: 26 Sep 2012 - 3:30 pm
