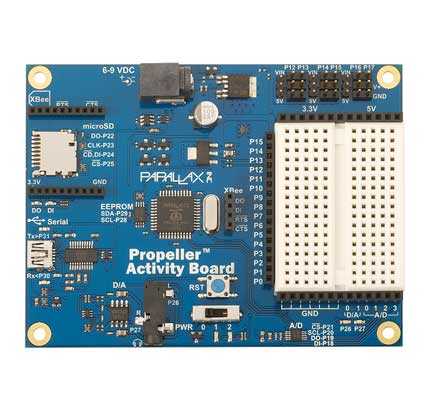

Propeller Activity Board

Harnessing the power of the 8-core Propeller microcontroller is now easier than ever before. The built-in Propeller P8X32A programming system is pre-wired to the most popular peripherals, making experimenting fast and fun.

Supported by the Propeller C Learning System that includes a programming tool and a suite of tutorials featuring simple circuits and libraries with code samples for core devices and sensors, multicore programming has never been simpler.

Key Features:

• XBee socket — control or receive data from your invention wirelessly
• microSD card holder — log sensor data or play sound files
• Mini audio/stereo jack — listen to WAV files, sound effects, or synthesized speech
• 3-pin headers — quickly connect servos, serial LCDs, etc.
• Breadboard — build and rebuild circuits without soldering (or desoldering!)
• A/D and D/A converters — read or set the voltages for battery monitoring or sensors
• Power via USB or power supply/battery pack — the choice is yours

Details

• 8-core Propeller P8X32A-Q44 microcontroller
• 18 Propeller I/O fully free
• 64 KB I2C EEPROM
• 5 MHz crystal oscillator
• microSD card slot
• 1/8” mini stereo-audio jack
• XBee socket with DO, DI, RTS, CTS access
• Breadboard with 34 5-socket rows
• 3-pin servo ports, jumper-select 5 V or VIN
• 12-bit 4-channel SPI ADC with 5 V reference-
• 2-channel D/A, 0–3.3 V
• 3-position power switch
• Reset button
• 2.1 mm center-positive power jack
• Auto-selects between USB or external power
• Built-in USB over-current protection
• Power requirements: 6–9 VDC from an external power supply, or 5 V from a USB port
• Communication: USB mini-B (onboard serial over USB)
• Dimensions: 4.0 x 3.05 x 0.625 in (10.16 x 7.75 x 1.59 cm)
• Operating temp range: +32 to +158 °F (0 to +70 °C)

Download	Details	More Info
	Propeller Activity Board Schematics - 885.74 KB | updated: 28 May 2013 - 10:53 am
	Propeller Activity Board Design Files - 1.47 MB | updated: 08 May 2013 - 10:22 am
	Propeller Activity Board Guide - 1.06 MB | updated: 08 Apr 2015 - 9:12 am
