Memsic 2125 Dual-axis Accelerometer - OEM

The Memsic 2125 is a low cost, dual-axis thermal accelerometer capable of measuring tilt, acceleration, rotation, and vibration with a range of ±3 g. For integration into existing applications, the Memsic 2125 is electrically compatible with other popular accelerometers.

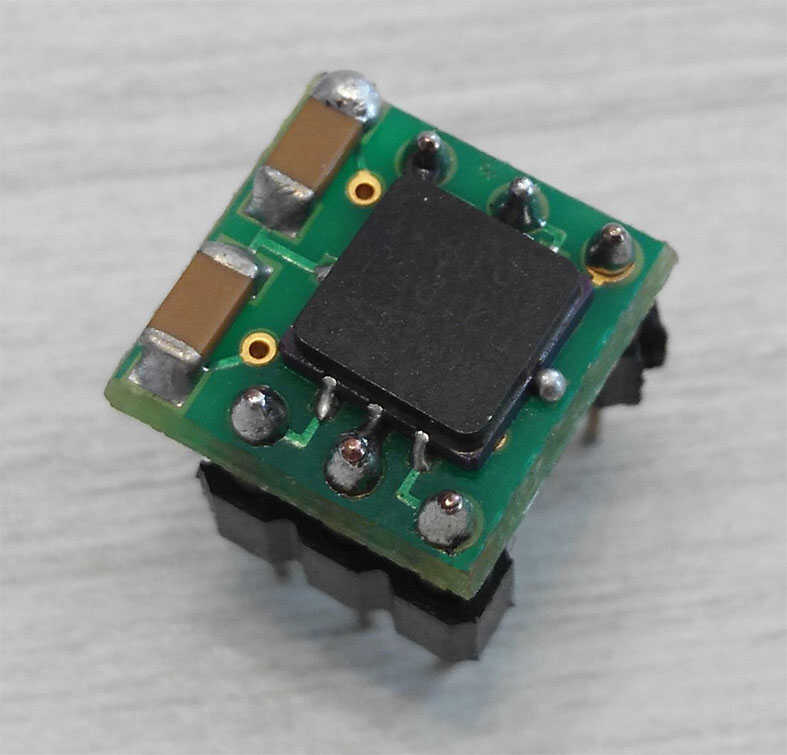

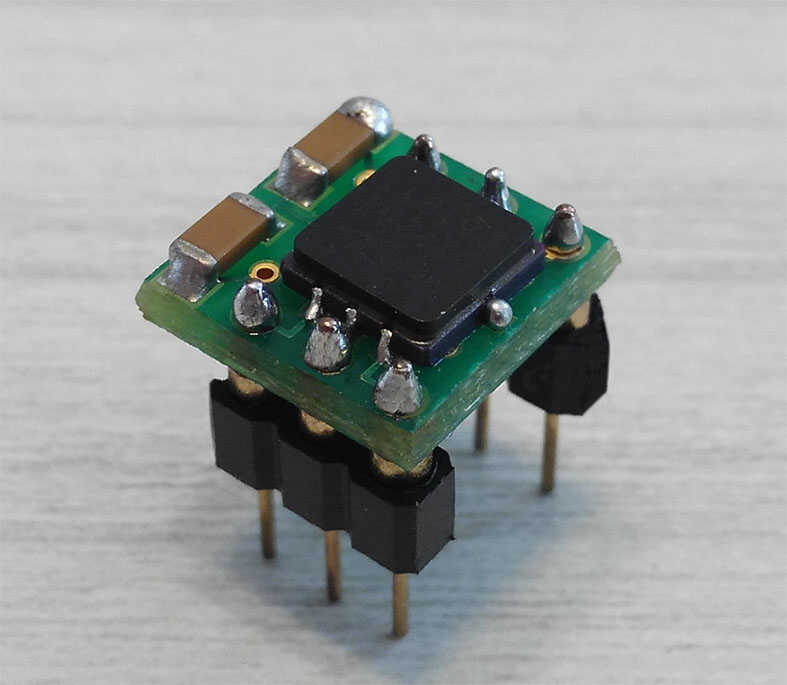

Memsic provides the 2125 in a surface-mount format. Parallax mounts the circuit on a small PCB, providing all I/O connections so it can easily be inserted on a breadboard or through-hole prototype area.

Key Features:

• Measures ±3 g on each axis, enough for data for a wide variety of applications
• Simple pulse output of g-force for each axis is easy to read for most any microcontroller
• Convenient 6-pin 0.1" spacing DIP module fits into a standard breadboard or through-hole board
• Analog output of temperature (Tout pin) allows for fine-tuning of advanced applications
• Low current at 3.3 or 5 V operation (less than 4 mA at 5 VDC) puts low demand on your system

Application Ideas:

• Dual-axis tilt sensing for remote controllers or autonomous robot navigation
• Single-axis rotational position sensing
• Movement/Lack-of-movement sensing for alarm systems
• R/C hobby projects such as autopilots

Details

• Power requirements: +3.3 to +5 VDC
• Communication: TTL/CMOS compatible 100 Hz PWM output signal with duty cycle proportional to acceleration
• Dimensions: 0.42 x 0.42 x 0.45 in (10.7 x 10.7 x 11.8 mm)
• Operating temp range: 32 to +158 °F (0 to +70 °C)

Download	Details	More Info
	Smart Sensors and Applications Text - 4.51 MB | updated: 12 Sep 2013 - 11:21 am
	Memsic 2125 Dual-Axis Accelerometer Schematic - 3.79 KB | updated: 28 Sep 2012 - 5:52 pm
	Memsic MXD2125 Datasheet - 140.19 KB | updated: 28 Sep 2012 - 5:51 pm
	Memsic 2125 Dual-Axis Accelerometer AppKit Code - 4 KB | updated: 28 Sep 2012 - 5:48 pm
	Memsic 2125 Dual-Axis Accelerometer AppKit - 99.28 KB | updated: 28 Sep 2012 - 5:46 pm
	Memsic 2125 Dual-Axis Accelerometer Product Guide - 127.92 KB | updated: 28 Sep 2012 - 5:43 pm

Additional Resources

• Tilt and Acceleration with the MX2125 Propeller C Tutorial (Learn.Parallax)
• XBee Wireless Tilt Controller Project for SumoBot or Boe-Bot robot (Learn.Parallax)
• Boe-Bot Navigation with Incline Sensing - BASIC Stamp project (Learn.Parallax)
• Memsic 2-axis Accelerometer KickStart  - PBASIC, Arduino, and Propeller Spin examples (Learn.Parallax)
• Stamps in Class Mini Projects Archive (Parallax Forums)
