Propeller Proto Board

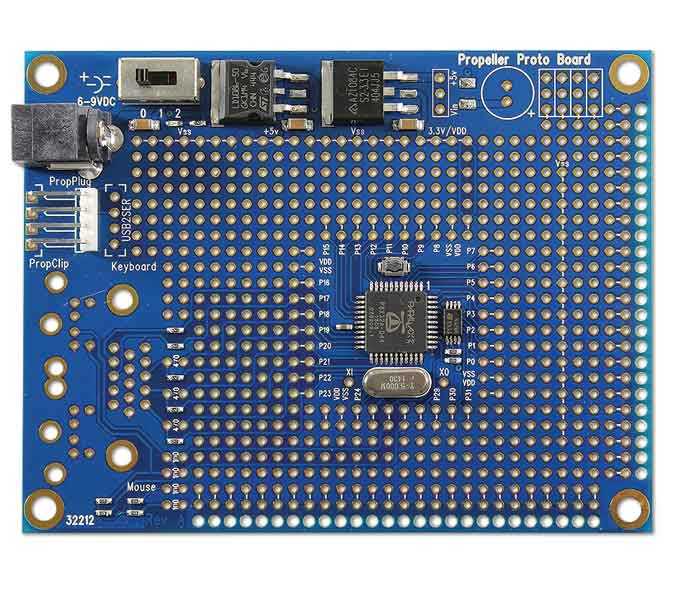

It's back!  The Parallax’s Propeller Proto Board is a low cost, high quality solution for 1-off or low quantity permanent projects using the Propeller chip. To save the user some expense, the USB programming interface is not included on the Propeller Proto Board. A Prop Plug (#32201) is recommended for programming, sold separately. A USB2SER (#28024) may also be used for programming with the addition of a 4-pin header.

Key Features

• Three-position power switch (off, logic power, power to logic and servo ports)
• 3-pin sockets for 4 servos, sensors, or other devices
• Access to all 32 Propeller I/O pins
• Large prototyping area wraps around Propeller chip
• Unplated row of holes along perimeter provide stress relief to off-board connections
• Accepts the optional VGA, mouse and keyboard interface available in the Accessory Kit (#130-32212)

Note: Boards manufactured in 2015 or later can supply up to 1.5 A, and do not have the capacitor and inductor components populating the servo interface circuit.

Details

• P8X32A-Q44 Propeller chip
• 64 KB EEPROM for program and data storage
• Removable 5MHz crystal
• Voltage requirements: 6-9 VDC
• 5V and 3.3V regulators provide up to 1.5 A maximum
• Power Requirements:  6-9 VDC; boards can source up to 1.5 A
• Communication Interface: 3.3 volt I/O
• Operating temperature:  -40 to +176 °F ( -40 to +80 °C)
• Dimensions:   3.05 x 4 in (7.75 x 10.6 cm)


Product Specific Downloads

Download	Details	More Info
	Propeller Proto Board Schematic - 58.78 KB | updated: 23 Oct 2012 - 12:28 pm
	Propeller Proto Board Tutorial - 100.11 KB | updated: 24 Sep 2012 - 8:04 pm
	Propeller ProtoBoard Documentation - 423.46 KB | updated: 07 Aug 2015 - 7:51 pm
