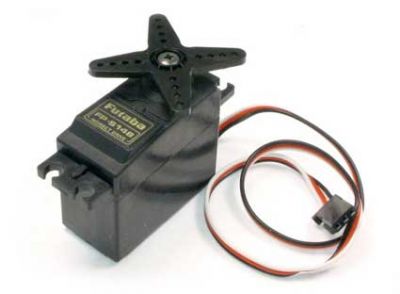

Futaba S148 Standard Precision Servo
One of the most popular general purpose servos. Its reputation is second to none. Ideal for use with cars, power boats, yachts, electric and engine powered aircraft and helicopters.
Control System: +Pulse Width Control 1520usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.23sec/60 degrees at no load
Operating Speed (6.0V): 0.19sec/60 degrees at no load
Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
Stall Torque (6.0V): 57 oz/in. (4.1kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
Continuous Rotation Modifiable: Yes
Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
Current Drain (4.8V): 7.2mA/idle
Current Drain (6.0V): 8mA/idle
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Bronze Bushings
Gear Type: All Nylon Gears
Connector Wire Length: 12"

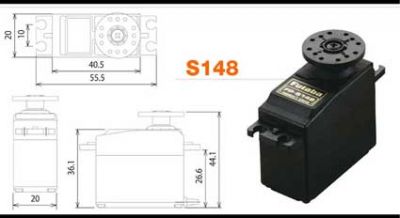

Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
Weight: 1.6oz. (44.4g)
One of the most popular general purpose servos. Its reputation is second to none. Ideal for use with cars, power boats, yachts, electric and engine powered aircraft and helicopters.
Control System: +Pulse Width Control 1520usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.23sec/60 degrees at no load
Operating Speed (6.0V): 0.19sec/60 degrees at no load
Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
Stall Torque (6.0V): 57 oz/in. (4.1kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
Continuous Rotation Modifiable: Yes
Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
Current Drain (4.8V): 7.2mA/idle
Current Drain (6.0V): 8mA/idle
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Bronze Bushings
Gear Type: All Nylon Gears
Connector Wire Length: 12"
Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
Weight: 1.6oz. (44.4g)
