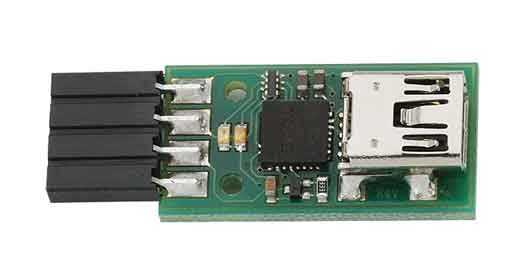

  • The Prop Plug provides a USB-to-serial port connection that is convenient for microcontroller programming and communication. This tiny device is capable of asynchronous communication at up to a 3 M baud with both 3.3-volt and 5.0-volt devices such as the Propeller and BASIC Stamp. The Prop Plug slips onto a 4-pin, 0.1" spaced header, allowing both printed circuit boards and breadboards to provide in-circuit programming capability.

    Key Features:

    • USB to serial port conversion
    • Capable of asynchronous communication up to 3 M baud
    • Compatible with 3.3 and 5 V microcontrollers
    • Connects to a 4-pin, 0.1" spaced header
    • Includes USB A to Mini B Cable

    • Voltage requirements: 5 VDC (supplied by USB port)
    • Current requirements: ~15mA (typical)
    • Communication: asynchronous serial @ up to 3Mbps
    • Dimensions: 1.27 x 0.51 x 0.31 in (32.25 x 12.85 x 7.75 mm)
    • Operating temp range: -40 to +185 °F (-40 to +85 °C)



    Prop Plug Documentation - 644.71 KB | updated: 24 Sep 2012 - 7:57 pm
